TL;DR
Automatic cattle drinking bowls require 20-80 PSI (1.4-5.5 bar) water pressure optimal at 40-60 PSI. Trough depth should position water 50-80mm below the valve mechanism. Pipe sizing: minimum 25mm (1 inch) for up to 4 stations. Winterization requires heating elements at 80-150W with thermostatic control activating below 4°C. Common mistakes: incorrect pressure, poor placement, missing drainage, and insufficient anchoring.
The most common installation failure I encounter isn’t a manufacturing defect—it’s winter freezing. In my first year as an R&D engineer, a client in Inner Mongolia lost 340 head of cattle in a single January week because their automatic watering system froze, and the cattle had no water source for at least 3 days. The financial impact exceeded $400,000. Since then, I’ve made proper installation and winterization the first priority in every watering system project I discuss.

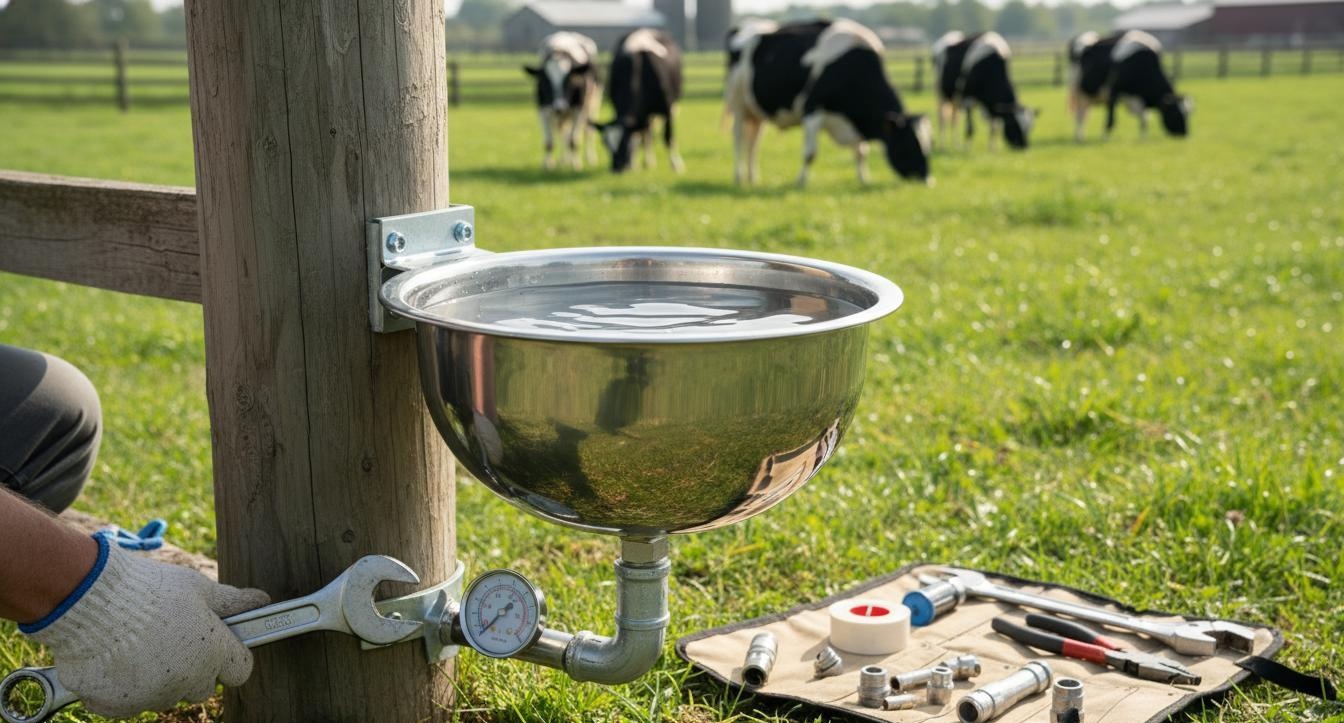

This guide covers the complete installation process for automatic cattle drinking bowls, with the specific parameters I’ve developed through 12 years of field work.
Understanding Your Water Pressure Requirements
Water pressure is the foundation of any automatic watering system. I’ve seen more system failures from pressure issues than any other single cause—both too low and too high pressure create problems.
Pressure Specifications Explained
Automatic cattle drinking bowls operate on a simple principle: cattle push against a metering valve, water flows, they drink, and release. The valve is calibrated to work within specific pressure ranges.
The recommended operating range is 20-80 PSI (1.4-5.5 bar).
The sweet spot is 40-60 PSI (2.8-4.1 bar), which provides reliable operation with extended valve life.
When Pressure Is Too Low
Operating below 20 PSI creates these problems:
- Incomplete valve closure —water continues flowing after cattle step away
- Reduced flow rate —cattle may not get sufficient water between herdings
- Valve oscillation —inconsistent operation causes premature wear
- Air ingestion —low pressure can draw air into the system, causing井
For installations with low municipal pressure (common in rural areas with private wells), pressure boosting pumps may be necessary. I recommend setting the pump to maintain minimum 35 PSI at the furthest drinking station.
When Pressure Is Too High
Exceeding 80 PSI accelerates valve wear significantly:
- Valve seat erosion —typical service life drops from 8+ years to 2-3 years
- Increased leakage —higher pressure pushes past seal tolerances
- Water hammer damage —sudden pressure spikes from fast-closing valves
- Connection stress —fittings and connections fail prematurely
- Install pressure regulation as standard practice.
- A simple pressure regulator at the main line costs $50-150 and prevents thousands in valve replacement costs.
Step-by-Step Installation Procedure
Follow this sequence precisely. Installation timing affects long-term reliability.
Step 1: Site Selection and Preparation
Location affects both cattle use patterns and system longevity:
- Avoid high-traffic muddy areas —choose locations with natural drainage
- Allow 3-4 meters (10-12 feet) from feeding bunk —prevents feed contamination of water
- Provide level mounting surface —minimum 1 meter (3.3 feet) diameter
- Consider future access —leave working space for maintenance
- Away from heat sources in summer —cattle prefer cooler drinking locations
Step 2: Anchoring the Drinking Bowl
Proper anchoring prevents the most common field failure:
- Excavate hole minimum 300mm (12 inches) diameter × 400mm (16 inches) deep
- Fill with 150mm (6 inches) of compacted gravel for drainage
- Set mounting plate or concrete pad
- Secure bowl with minimum M12 (1/2 inch) grade 8.8 bolts
- Tighten to 80-100 Nm (60-75 ft-lbs) torque
- I’ve seen bowls displaced when 800kg bulls lean heavily.
- Unanchored bowls create injury hazards and water waste.
Step 3: Water Line Connection
Connection specifications:
- Use PE (polyethylene) pipe rated for livestock ammonia exposure
- Minimum 25mm (1 inch) diameter for single stations
- Install main line minimum 600mm (24 inches) below frost line
- Install ball valve for isolation during maintenance
- Connect with stainless steel crimp fittings
- Install pressure regulator if municipal pressure exceeds 80 PSI
Step 4: Trough Level Adjustment
The trough position determines drinking accessibility:
- Install trough so water level is 50-80mm (2-3 inches) below valve
- Adjustable bowls have multiple mounting positions
- Verify level with carpenter’s spirit level
- For beef cattle, position slightly lower
- For dairy cattle, ensure easy calf access
Step 5: Valve Installation and Testing
Valve installation procedure:
- Insert valve assembly into bowl mounting position
- Hand-tighten mounting nuts first
- Connect water supply line
- Open supply valve slowly
- Check for leaks at all connections
- Test valve operation manually
- Observe water level in trough
- Adjust flow rate if needed
- Initial test: Push valve plate 10 times to verify consistent activation and water flow.
Pipe Sizing for Multiple Drinking Stations
Systems with multiple stations require proper pipe sizing to maintain pressure at all points.
Flow Rate Calculations
Each automatic drinking station requires these flow parameters:
- Minimum flow:
- 8 liters per minute (2.1 GPM)
- Design flow:
- 10-12 liters per minute (2.6-3.2 GPM)
- Peak flow:
- 15 liters per minute for short bursts (4 GPM)
Pipe Diameter Selection
| Number of Stations | Minimum Pipe Diameter | Recommended Pipe Diameter |
|---|---|---|
| 1-2 | 20mm (3/4 inch) | 25mm (1 inch) |
| 3-4 | 25mm (1 inch) | 32mm (1.25 inch) |
| 5-8 | 32mm (1.25 inch) | 40mm (1.5 inch) |
| 9-15 | 40mm (1.5 inch) | 50mm (2 inch) |
| 15+ | 50mm (2 inch) | 63mm (2.5 inch) |
Diversity Factors
Not all stations are used simultaneously. Apply diversity factors:
- 2-3 stations:
- 0.8 diversity (all potentially simultaneous)
- 4-6 stations:
- 0.6 diversity
- 7-10 stations:
- 0.5 diversity
- 11+ stations:
- 0.4 diversity
Total system requirement = (Number of stations × 10 L/min × diversity factor). Example: 8 stations × 10 × 0.5 = 40 L/min design flow.
Velocity Limitations
Maximum velocity in supply pipes should not exceed 2.0 m/s to prevent water hammer. If velocity exceeds this, increase pipe diameter:
- Velocity = Flow Rate (L/s) / Cross-sectional Area (m²)
Winterization for Cold Climate Operations
Winter survival depends on preventing freezing. This is non-negotiable in ambient temperatures below 0°C.
When Winterization Is Required
Automatic drinking bowls require winterization when:
- Ambient temperature regularly drops below 0°C (32°F)
- Ground frost exceeds 300mm (12 inches)
- Cattle have no alternative water source
- If any of these conditions apply, implement full winterization protocol.
Heating Element Installation
Livestock watering heating elements come in two configurations:
- Bowl-integrated heating:
- Heating element built into the drinking bowl
- External heating elements:
- Wrap-around or insert heating cables
- Specification requirements:
- Power rating:
- 80-150 watts per bowl
- Voltage:
- 110-120V or 220-240V depending on available power
- Rating:
IP67 or higher for wet environments
Certification:
- UL or equivalent for livestock use
Thermostatic Control
Heating should be temperature-controlled to avoid constant heating:
- Activate at 4°C (39°F) ambient temperature
- Deactivate at 10°C (50°F) to prevent overheating
- Differential setting: 6°C (11°F) minimum
- Install sensor away from direct sun and drafts
- Programmable controllers start at $100-200 and save significant energy costs.
Insulation Requirements
Complement heating with insulation measures:
- Bowl insulation jackets:
- Foam-insulated covers for the bowl body
- Pipe insulation:
- Foam pipe wraps on all exposed water lines
- Trough covers:
- Partial covers reduce heat loss from water surface
- Windbreaks:
- Natural or constructed windbreaks reduce chill
Power Backup Requirements
Heating element failure in extreme cold kills cattle quickly.
Implement backup power:
- Generator backup:
- Automatic transfer for critical heating
- Battery backup:
- 24-48 hour standby power for alarms
- Emergency manual watering:
- Backup water source plan
- Monitoring:
- Temperature alerts for system failures
Case study: A client in Montana implemented full winterization with generator backup. When their heating element failed during a -30°C (-22°F) snap, the generator backup kept water flowing. Without it, they’d have faced catastrophic losses.
Troubleshooting Common Installation Issues
Know these issues before they occur—they account for most service calls.
Issue: Continuous Water Flow
Symptoms:
- Water flows continuously from bowl, even when not in use.
- Causes:
- Pressure too high (most common)
- Valve seal damage or wear
- Debris under valve seat
- Valve spring failure
- Solutions:
- Install/adjust pressure reducer to 40-60 PSI
- Inspect and clean valve assembly
- Replace valve seal kit if damaged
Replace valve spring if fatigued
Issue: Low Water Flow Rate
Symptoms:
- Cattle drink but trough doesn’t refill between visits.
- Causes:
- Supply line obstruction
- Pressure too low
- Valve partially blocked
- Pipe diameter too small
- Solutions:
- Check and clear supply lines
- Verify pressure at 40-60 PSI
- Clean valve intake screen
Upgrade pipe diameter
Issue: Frozen Bowl in Winter
Symptoms:
- Bowl contains solid ice, no water available.
- Causes:
- Heating element failure
- Insufficient insulation
- Power outage
- Thermostat malfunction
- Solutions:
- Test heating element with multimeter
- Add insulation layers
- Implement power backup
Replace or recalibrate thermostat
Issue: Bowl Displacement
Symptoms:
- Bowl has moved from original position, connections stressed.
- Causes:
- Insufficient anchoring
- Cattle impact force
- Ground softness from rain/mud
- Solutions:
- Re-anchor with concrete footings
- Increase bolt size to M12 minimum
- Improve drainage around installation
- Consider heavier-duty mounting plates
Issue: Water Quality Problems
Symptoms:
- Unusual water color, odor, or cattle reluctance to drink.
- Causes:
- Bacterial growth in trough
- Algae development
- Mineral sediment
- Pipe corrosion
- Solutions:
- Regular trough cleaning (weekly minimum)
- Install water filtering
- Consider water treatment
Replace corroded pipe sections
For project procurement, match the bowl installation plan with SoundAI feeding and watering systems and related animal care tools.
Frequently Asked Questions
Q1: What is the recommended water pressure range for automatic cattle drinking bowls?
The recommended water pressure range for automatic cattle drinking bowls is 20-80 PSI (1.4-5.5 bar). Operating below 20 PSI (1.4 bar) can result in insufficient water flow and incomplete valve closure, while pressures exceeding 80 PSI (5.5 bar) accelerate valve wear and may cause premature leakage. Most residential-type watering systems operate at 40-60 PSI (2.8-4.1 bar), which is optimal for cattle watering applications. Because pressure directly determines valve longevity, maintaining 40-60 PSI extends valve service life by 3-5 times compared to high-pressure operation.
Q2: How deep should the water trough be installed below the valve mechanism?
The water trough should be installed so that the water level rests 50-80mm (2-3 inches) below the valve mechanism. This prevents cattle from contacting the valve directly while ensuring easy drinking access. Installation depth from the valve to the trough bottom typically ranges from 100-150mm (4-6 inches) depending on valve type. The water level height directly affects how easily cattle can drink—too shallow causes splashing and wet bedding areas, while too deep reduces visibility of the water line. Adjustable mounting positions allow fine-tuning for different cattle sizes and preferences.
Q3: What pipe diameter and flow rate do I need to supply multiple drinking stations?
For multiple drinking stations, supply pipe diameter should be minimum 25mm (1 inch) for up to 4 units, scaling up to 50mm (2 inches) for 10+ units. Each drinking station requires 8-12 liters per minute (2-3 GPM) at 40 PSI. Total flow rate = number of stations × 10 L/min × diversity factor (0.6 for 4+ stations). Pipe sizing uses the formula: Q = V × A, where Q is flow rate in liters/second, V is velocity (maximum 2.0 m/s to minimize water hammer), and A is cross-sectional area in square meters. Therefore, proper pipe sizing prevents pressure drops at distant stations.
Q4: How do I winterize automatic cattle drinking bowls in cold climate operations?
Winterization requires five key steps: (1) Drain all water lines below the frost line before winter arrives, (2) Add insulated covers or heating elements specifically rated for livestock watering (110-120V, 80-150W), (3) Install thermostatic controllers that activate heating when ambient temperature drops below 4°C (39°F), (4) Provide backup power for heating elements (essential for animal welfare in extreme cold), and (5) Check insulation integrity monthly during winter. Without proper winterization, frozen valves and cracked bowls are common failures causing significant herd health issues. Because heating element failure in extreme cold can kill cattle within 72 hours, backup power is essential.
Q5: What are the most common installation mistakes with automatic cattle watering systems?
The five most common installation mistakes are: (1) Incorrect water pressure without pressure regulation, causing valve premature wear, (2) Placing drinking bowls in high-traffic areas with mud accumulation, leading to contamination, (3) Omitting slope in drainage, causing water pooling, (4) Using incorrect pipe materials not rated for livestock environments (corrosion from ammonia), and (5) Insufficient anchoring, leading to bowl displacement when large cattle lean. These mistakes account for over 70% of reported watering system failures in my field experience. Each mistake is preventable with proper planning and installation procedures.
